Rollator for seniors that can easily climb curbs and go up and down stairs | post-ideas.com
Rollator for seniors that can easily climb curbs and go up and down stairs
Here are two rollator variants that share a common frame but use different climbing mechanisms depending on budget/risk—one passive (no motors) and one powered. Both are designed for curbs and carefully controlled stair use with a handrail.
1) Design goals (what we’re optimizing for)
* Safety first: stable on flat ground; controlled, predictable motion on steps; fail-safe brakes; no surprise movements.
* Simple user flow: one-touch “curb/stair mode,” clear labels, big tactile controls.
* Ergonomics: upright posture, adjustable handles (5th–95th percentile), low handle forces (<50–70 N typical).
* Portability: folds to fit a car trunk; <11 kg target (passive), <15 kg (powered).
* Serviceability: modular wheel pods, off-the-shelf bearings/tires, bolt-on accessories.
---
2) Shared chassis & ergonomics
* Frame: 6000-series aluminum oval tubing, triangulated lower deck; cross-brace locks when unfolded.
* Handle posts: telescoping (pop-pin + screw collar) with 10 mm increments, height range \~770–980 mm from ground.
* Hand grips: soft, high-friction TPE, flared ends; angle-adjustable to keep wrists neutral.
* Wheelbase/track: \~600 mm track width, \~580 mm wheelbase for stability without snagging doors.
* Seat & bag: flip-up seat (webbing over frame) with 120 kg rated frame; removable front bag with rigid liner.
* Brakes: dual hand levers with parking lock; mechanical drum or band brakes at rear. Parking lock must engage automatically in “stair mode.”
---
3) Variant A — Passive “Tri-Bogie” Climber
Best for low cost/weight, great for curbs and short stair runs with a handrail.
Mechanism
* Front tri-wheel bogies: Each front corner uses a 3-wheel cluster on a rotating star hub (think stroller stair wheels). Wheel OD \~180 mm (7"), narrow pneumatic or micro-pneumatic tires (e.g., 30–35 mm). This lets the front roll over 100–150 mm curbs/steps by “handing off” contact from one wheel to the next.
* Rear wheels: Large 230–250 mm (9–10") single wheels with integrated one-way ratchets (anti-rollback) engaged only in stair mode. Ratchet prevents the rollator from rolling backward when the user pauses on a step.
* Curb/stair selector: A big lever on the right handle toggles “Flat” → “Stair.” In Stair: (1) parking lock defaults ON when handle is released, (2) rear anti-rollback engages, (3) front casters’ swivel locks engage to keep tracking straight.
How it works
* Curb up: User rolls to curb, leans handles down slightly; tri-wheel rotates and climbs; rear wheel follows.
* Stairs up (with handrail): User stands on step below, holds handrail with one hand, rollator handle with the other. Tip front tri-bogies onto the step; push; anti-rollback holds position if they pause.
* Stairs down: User faces down, descends one step at a time. A controlled-descent friction shoe (small replaceable polymer pad under the rear frame) can touch nosing to add drag; anti-rollback keeps it from accelerating.
Safety features
* Auto-parking brake when the user releases the lever in Stair mode.
* Stability wings: low-profile “outriggers” (folding rubber nubs) near the rear axle widen the stance by \~40 mm total on stairs.
* Bright step-edge decals on the lower frame to help depth perception.
Targets
* Mass: \~9.5–10.5 kg
* Max curb/step: 150 mm with 180 mm wheels
* Handle force (typical): ≤60 N on a standard 150 mm step (user dependent)
---
4) Variant B — Powered Assist with Micro-Tracks (Premium)
For users who need help on full flights, preserves control and safety. (See figure 1).
Mechanism
* Retractable micro-tracks at the rear (think short, rubber timing-belt style tracks, \~280 mm long contact patch). Fold away for normal rolling; deploy for stairs/steep ramps.
* Hub motors in rear wheels (150–250 W each) for ramps/curbs; geared track drive (\~10:1) engages only in stair mode for high torque and low speed (0.1–0.2 m/s).
* Sensors: inclinometer + optical edge sensor to confirm “stair mode” context; if slope >8° or step edge detected and user toggles Stair, system limits speed and enables step-by-step creep.
* Controls: large up/down rocker under right handle; left lever is dead-man (must be squeezed). Release = stop + hold (electromagnetic brake + track pawl).
* Anti-rollback: mechanical pawl in the track module plus motor braking. Manual override lever for emergencies.
Safety & UX
* Two-hand arming: switching to Stair mode requires press+hold for 1.5 s with both hands on the grips (capacitive pads), preventing unintended deployment.
* Audible/LED feedback: slow beeps while moving on stairs; bar LEDs show load/torque; red flash if overload.
* IP54 electronics, internal 200–250 Wh Li-ion pack (\~36 V), charge port high on the frame, battery hot-swappable from the bag compartment.
Targets
* Mass: 13–15 kg
* Rated climb: typical domestic stairs (rise ≤180 mm, going ≥250 mm) with a handrail and user step-by-step pacing
* Endurance: \~25–35 floors equivalent of up+down in assist mode per charge (varies with user weight)
---
5) Braking & control architecture (both variants)
* Primary brakes: cable-actuated drums at rear with parking pawls.
* Stair mode logic (mechanical/powered):
* Engage anti-rollback (mechanical ratchet or track pawl).
* Reduce freewheeling (caster locks up front).
* Dead-man actuation required for any powered motion (Variant B).
* Redundancy: independent left/right brake cables; fail-safe defaults to lock.
---
6) Dimensions & fit
* Overall width: 610 mm (fits standard 630 mm interior doors with margin).
* Folded: \~610 W × 300 D × 780 H mm (seat folded up, bag removed).
* Seat height: 540 mm; seat depth 220 mm.
* Anthro fit: handle height range 770–980 mm; forearm-rest kit option for users with low grip strength.
---
7) Materials & manufacturability
* Frame: hydroformed 6061-T6 with TIG welds; powder coat + clear.
* Wheel bushings/bearings: sealed 6002/6003 bearings; star hub on 10 mm axle with Delrin or nylon spacers.
* Track module (B): glass-filled nylon housing, steel inserts for shafts, nitrile belt with molded lugs; steel pawl.
* Fasteners: stainless A2-70 with thread-locker patches; captive hardware for service.
* Tool-less modules: wheel pods and track cassettes swap via quarter-turn pins.
---
8) User workflow (clear, simple)
1. Flat mode: behaves like a normal rollator. Sit/stand with parking brake locked.
2. Curb assist (A or B): toggle to Stair; front bogies (A) or short power burst (B) to mount curb; auto-hold if the user lets go.
3. Stairs (with handrail): face the stairs, toggle Stair, hold dead-man. Move one step at a time. Release = hold. Turning on landings only.
---
9) Safety, testing & compliance checklist
* Standards to design against: ISO 11199-2 (rollators), ISO 7176-19 (transit safety principles), IEC 60601-1-11 (for powered assist risk environment aspects), ISO 14971 (risk management). Local stair use warnings per jurisdiction.
* Mechanical tests: static load 150 kg on seat; 15,000 cycle curb test at 100 kg equivalent; drop test 50 mm edge.
* Stair trials: full-scale rig with adjustable rise/going; instrumented handle forces; anti-rollback engagement timing <50 ms.
* Ingress/EMC (B): IP54 rain test; IEC 60601-1-2 EMC pre-scan.
* FMEA hot spots: ratchet failure → redundant pawl; track jam → manual release; battery BMS fault → contactor opens; sensor mis-read → speed-limited creep + manual brake dominates.
---
10) Indicative BOM & cost targets (ex-factory)
* Variant A: frame + seat + bag (~~€85), bogie hubs + wheels/tires/bearings (~~€65), rear wheels + brakes + ratchets (~~€50), controls/cables (~~€20), labor/overhead (\~€40). Target COGS \~€260; MSRP \~€549–649.
* Variant B: add track modules (~~€140), hub motors + controllers (~~€180), battery + charger (~~€120), sensors/loom/HMI (~~€60), extra labor/QA (\~€60). Target COGS \~€600; MSRP \~€1199–1499.
---
11) Accessory ecosystem
* Forearm rests (post-op users), cane clip, oxygen tank bracket, LED front bar, phone/SOS module, rain cover for bag, winter tires (soft compound).
---
12) What to prototype first
* Step-rig + force gauges to validate handle forces and anti-rollback behavior.
* Front bogie geometry (A): try 160/180/200 mm wheel ODs and hub offsets; pick the lowest handle force vs. weight.
* Track cassette (B): low-speed torque + pawl reliability; verify emergency manual release.
* Human factors trials with seniors and a PT/OT present: switching modes, resting on seat, turning on a landing.
---
1) Design goals (what we’re optimizing for)
* Safety first: stable on flat ground; controlled, predictable motion on steps; fail-safe brakes; no surprise movements.
* Simple user flow: one-touch “curb/stair mode,” clear labels, big tactile controls.
* Ergonomics: upright posture, adjustable handles (5th–95th percentile), low handle forces (<50–70 N typical).
* Portability: folds to fit a car trunk; <11 kg target (passive), <15 kg (powered).
* Serviceability: modular wheel pods, off-the-shelf bearings/tires, bolt-on accessories.
---
2) Shared chassis & ergonomics
* Frame: 6000-series aluminum oval tubing, triangulated lower deck; cross-brace locks when unfolded.
* Handle posts: telescoping (pop-pin + screw collar) with 10 mm increments, height range \~770–980 mm from ground.
* Hand grips: soft, high-friction TPE, flared ends; angle-adjustable to keep wrists neutral.
* Wheelbase/track: \~600 mm track width, \~580 mm wheelbase for stability without snagging doors.
* Seat & bag: flip-up seat (webbing over frame) with 120 kg rated frame; removable front bag with rigid liner.
* Brakes: dual hand levers with parking lock; mechanical drum or band brakes at rear. Parking lock must engage automatically in “stair mode.”
---
3) Variant A — Passive “Tri-Bogie” Climber
Best for low cost/weight, great for curbs and short stair runs with a handrail.
Mechanism
* Front tri-wheel bogies: Each front corner uses a 3-wheel cluster on a rotating star hub (think stroller stair wheels). Wheel OD \~180 mm (7"), narrow pneumatic or micro-pneumatic tires (e.g., 30–35 mm). This lets the front roll over 100–150 mm curbs/steps by “handing off” contact from one wheel to the next.
* Rear wheels: Large 230–250 mm (9–10") single wheels with integrated one-way ratchets (anti-rollback) engaged only in stair mode. Ratchet prevents the rollator from rolling backward when the user pauses on a step.
* Curb/stair selector: A big lever on the right handle toggles “Flat” → “Stair.” In Stair: (1) parking lock defaults ON when handle is released, (2) rear anti-rollback engages, (3) front casters’ swivel locks engage to keep tracking straight.
How it works
* Curb up: User rolls to curb, leans handles down slightly; tri-wheel rotates and climbs; rear wheel follows.
* Stairs up (with handrail): User stands on step below, holds handrail with one hand, rollator handle with the other. Tip front tri-bogies onto the step; push; anti-rollback holds position if they pause.
* Stairs down: User faces down, descends one step at a time. A controlled-descent friction shoe (small replaceable polymer pad under the rear frame) can touch nosing to add drag; anti-rollback keeps it from accelerating.
Safety features
* Auto-parking brake when the user releases the lever in Stair mode.
* Stability wings: low-profile “outriggers” (folding rubber nubs) near the rear axle widen the stance by \~40 mm total on stairs.
* Bright step-edge decals on the lower frame to help depth perception.
Targets
* Mass: \~9.5–10.5 kg
* Max curb/step: 150 mm with 180 mm wheels
* Handle force (typical): ≤60 N on a standard 150 mm step (user dependent)
---
4) Variant B — Powered Assist with Micro-Tracks (Premium)
For users who need help on full flights, preserves control and safety. (See figure 1).
Mechanism
* Retractable micro-tracks at the rear (think short, rubber timing-belt style tracks, \~280 mm long contact patch). Fold away for normal rolling; deploy for stairs/steep ramps.
* Hub motors in rear wheels (150–250 W each) for ramps/curbs; geared track drive (\~10:1) engages only in stair mode for high torque and low speed (0.1–0.2 m/s).
* Sensors: inclinometer + optical edge sensor to confirm “stair mode” context; if slope >8° or step edge detected and user toggles Stair, system limits speed and enables step-by-step creep.
* Controls: large up/down rocker under right handle; left lever is dead-man (must be squeezed). Release = stop + hold (electromagnetic brake + track pawl).
* Anti-rollback: mechanical pawl in the track module plus motor braking. Manual override lever for emergencies.
Safety & UX
* Two-hand arming: switching to Stair mode requires press+hold for 1.5 s with both hands on the grips (capacitive pads), preventing unintended deployment.
* Audible/LED feedback: slow beeps while moving on stairs; bar LEDs show load/torque; red flash if overload.
* IP54 electronics, internal 200–250 Wh Li-ion pack (\~36 V), charge port high on the frame, battery hot-swappable from the bag compartment.
Targets
* Mass: 13–15 kg
* Rated climb: typical domestic stairs (rise ≤180 mm, going ≥250 mm) with a handrail and user step-by-step pacing
* Endurance: \~25–35 floors equivalent of up+down in assist mode per charge (varies with user weight)
---
5) Braking & control architecture (both variants)
* Primary brakes: cable-actuated drums at rear with parking pawls.
* Stair mode logic (mechanical/powered):
* Engage anti-rollback (mechanical ratchet or track pawl).
* Reduce freewheeling (caster locks up front).
* Dead-man actuation required for any powered motion (Variant B).
* Redundancy: independent left/right brake cables; fail-safe defaults to lock.
---
6) Dimensions & fit
* Overall width: 610 mm (fits standard 630 mm interior doors with margin).
* Folded: \~610 W × 300 D × 780 H mm (seat folded up, bag removed).
* Seat height: 540 mm; seat depth 220 mm.
* Anthro fit: handle height range 770–980 mm; forearm-rest kit option for users with low grip strength.
---
7) Materials & manufacturability
* Frame: hydroformed 6061-T6 with TIG welds; powder coat + clear.
* Wheel bushings/bearings: sealed 6002/6003 bearings; star hub on 10 mm axle with Delrin or nylon spacers.
* Track module (B): glass-filled nylon housing, steel inserts for shafts, nitrile belt with molded lugs; steel pawl.
* Fasteners: stainless A2-70 with thread-locker patches; captive hardware for service.
* Tool-less modules: wheel pods and track cassettes swap via quarter-turn pins.
---
8) User workflow (clear, simple)
1. Flat mode: behaves like a normal rollator. Sit/stand with parking brake locked.
2. Curb assist (A or B): toggle to Stair; front bogies (A) or short power burst (B) to mount curb; auto-hold if the user lets go.
3. Stairs (with handrail): face the stairs, toggle Stair, hold dead-man. Move one step at a time. Release = hold. Turning on landings only.
---
9) Safety, testing & compliance checklist
* Standards to design against: ISO 11199-2 (rollators), ISO 7176-19 (transit safety principles), IEC 60601-1-11 (for powered assist risk environment aspects), ISO 14971 (risk management). Local stair use warnings per jurisdiction.
* Mechanical tests: static load 150 kg on seat; 15,000 cycle curb test at 100 kg equivalent; drop test 50 mm edge.
* Stair trials: full-scale rig with adjustable rise/going; instrumented handle forces; anti-rollback engagement timing <50 ms.
* Ingress/EMC (B): IP54 rain test; IEC 60601-1-2 EMC pre-scan.
* FMEA hot spots: ratchet failure → redundant pawl; track jam → manual release; battery BMS fault → contactor opens; sensor mis-read → speed-limited creep + manual brake dominates.
---
10) Indicative BOM & cost targets (ex-factory)
* Variant A: frame + seat + bag (~~€85), bogie hubs + wheels/tires/bearings (~~€65), rear wheels + brakes + ratchets (~~€50), controls/cables (~~€20), labor/overhead (\~€40). Target COGS \~€260; MSRP \~€549–649.
* Variant B: add track modules (~~€140), hub motors + controllers (~~€180), battery + charger (~~€120), sensors/loom/HMI (~~€60), extra labor/QA (\~€60). Target COGS \~€600; MSRP \~€1199–1499.
---
11) Accessory ecosystem
* Forearm rests (post-op users), cane clip, oxygen tank bracket, LED front bar, phone/SOS module, rain cover for bag, winter tires (soft compound).
---
12) What to prototype first
* Step-rig + force gauges to validate handle forces and anti-rollback behavior.
* Front bogie geometry (A): try 160/180/200 mm wheel ODs and hub offsets; pick the lowest handle force vs. weight.
* Track cassette (B): low-speed torque + pawl reliability; verify emergency manual release.
* Human factors trials with seniors and a PT/OT present: switching modes, resting on seat, turning on a landing.
---

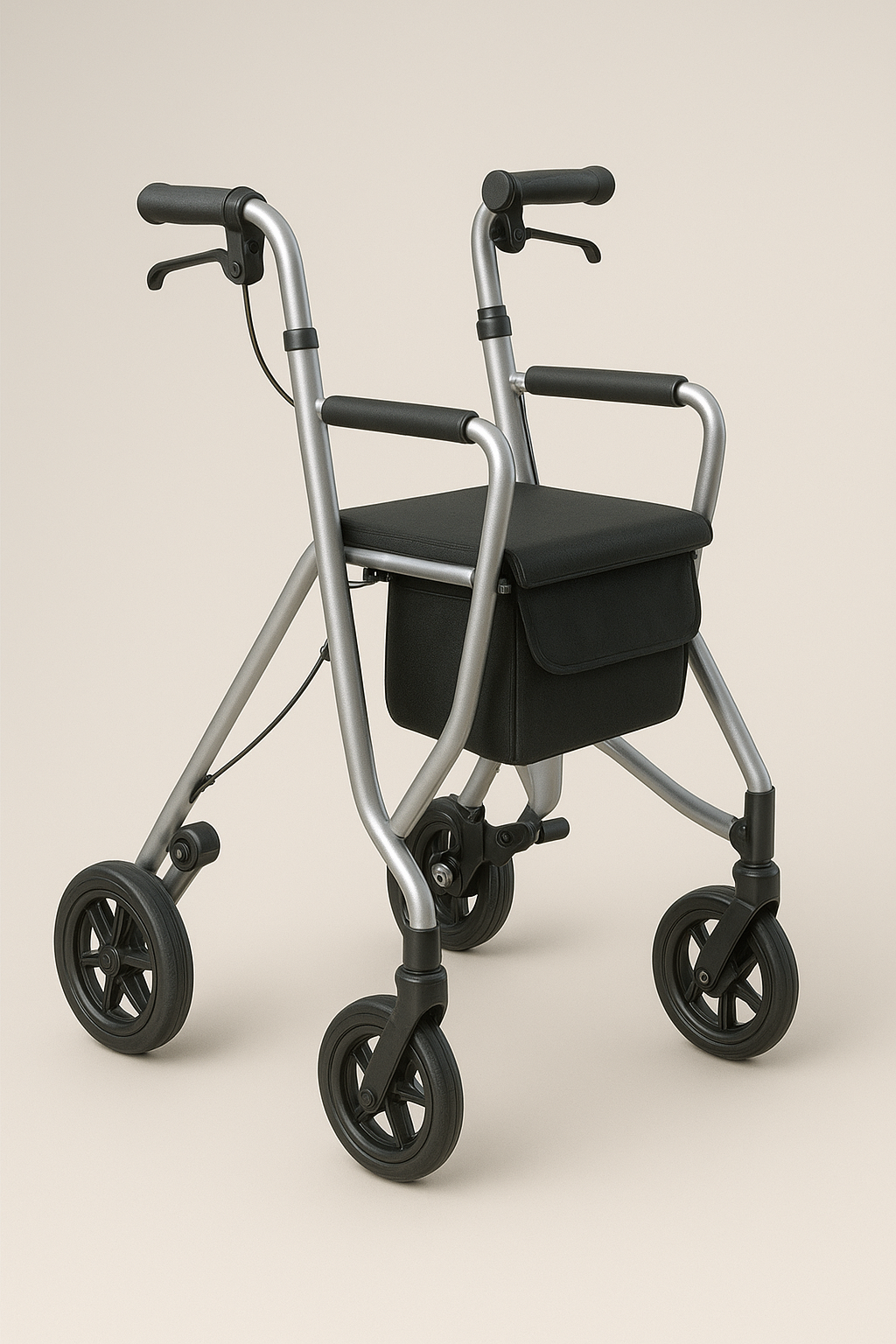

Figure 1.
