Designing environmentally friendly, reliable car tires that minimize harmful tire wear pollution involves balancing performance, durability, and sustainability. Here's a comprehensive design, including chemical composition, material choices, and engineering strategies.

---

Eco-Friendly Tire Design Overview

Key Design Goals

1. Minimize harmful microplastic emission
2. Maximize durability and traction
3. Avoid toxic compounds in manufacture and use
4. Ensure recyclability and circular economy potential


Eco-friendly car tires should:

* Use natural or synthetic bio-rubber
* Replace carbon black with bio-silica or lignin
* Avoid toxic plasticizers, heavy metals, and PAHs
* Design for low wear rate and wear particle biodegradability

---

Tread and Structure Design

1. Tread Compound (Contact Layer)

* Objective: High wear resistance, low rolling resistance, safe grip.
* Eco-friendly composition:

* Bio-based silica filler (e.g., rice husk ash silica) – replaces carbon black
* Natural rubber (Hevea brasiliensis latex)
* Limonene-derived rubber (bio-synthetic polyisoprene) – renewable alternative
* Epoxidized natural rubber (ENR) – improves wet grip and rolling resistance
* Vegetable oil plasticizers – such as soybean oil instead of petroleum-derived oils
* Zinc oxide (low content) – but consider non-zinc activators to avoid aquatic toxicity

Example Tread Compound by Weight:

| Component | Weight % | Function |
| ----------------------------- | -------- | ------------------------------- |
| Natural rubber (or ENR) | 50% | Elasticity and strength |
| Silica (from rice husk ash) | 25% | Reinforcement, reduced abrasion |
| Bio-oil plasticizer (soybean) | 10% | Flexibility, processability |
| Limonene rubber | 10% | Wear resistance, renewability |
| Sulfur + accelerator package | 2% | Vulcanization |
| Zn-free activator (organic) | 1% | Sustainable vulcanization |
| Anti-ozonant (non-toxic) | 2% | UV & ozone resistance |

---

Inner Layers (Carcass and Sidewall)

* Polyester, rayon, or bio-nylon cords – for structural strength
* Recycled steel belts – structural reinforcement
* Sidewall rubber: bio-based rubber blend with anti-aging additives derived from pine rosin or tannin compounds

---

Chemical Additives (Green Alternatives)

| Conventional Additive | Green Replacement |
| --------------------------- | ------------------------------------------- |
| Aromatic oil | Soybean, sunflower, or canola oil |
| Carbon black (polluting) | Silica from rice husk, clays, lignin-carbon |
| Traditional accelerators | Safer, nitrosamine-free accelerators |
| Zinc oxide (aquatic hazard) | MgO, CaO, or bio-based activators |

---

Sustainable Tire Lifecycle

Circular Features

* Designed for disassembly (modular bead design)
* Recyclable compounds – thermoplastic elastomers in non-tread layers
* Cradle-to-cradle material tracking

Biodegradable Wear Particles

Use lignin-based or polylactic acid (PLA)-coated microstructures in the tread to ensure:

* Non-toxic decomposition in soil/water
* Accelerated photodegradation under sunlight

---

Performance Testing Metrics

To ensure reliability:

* Abrasion resistance: >80 on DIN wear scale
* Rolling resistance: ≤6 kg/ton (EU Class A)
* Wet grip: ≥1.0 μ (friction coefficient)
* Microplastic generation: <10 mg/km/tire (significantly lower than current average of \~100 mg/km)

---

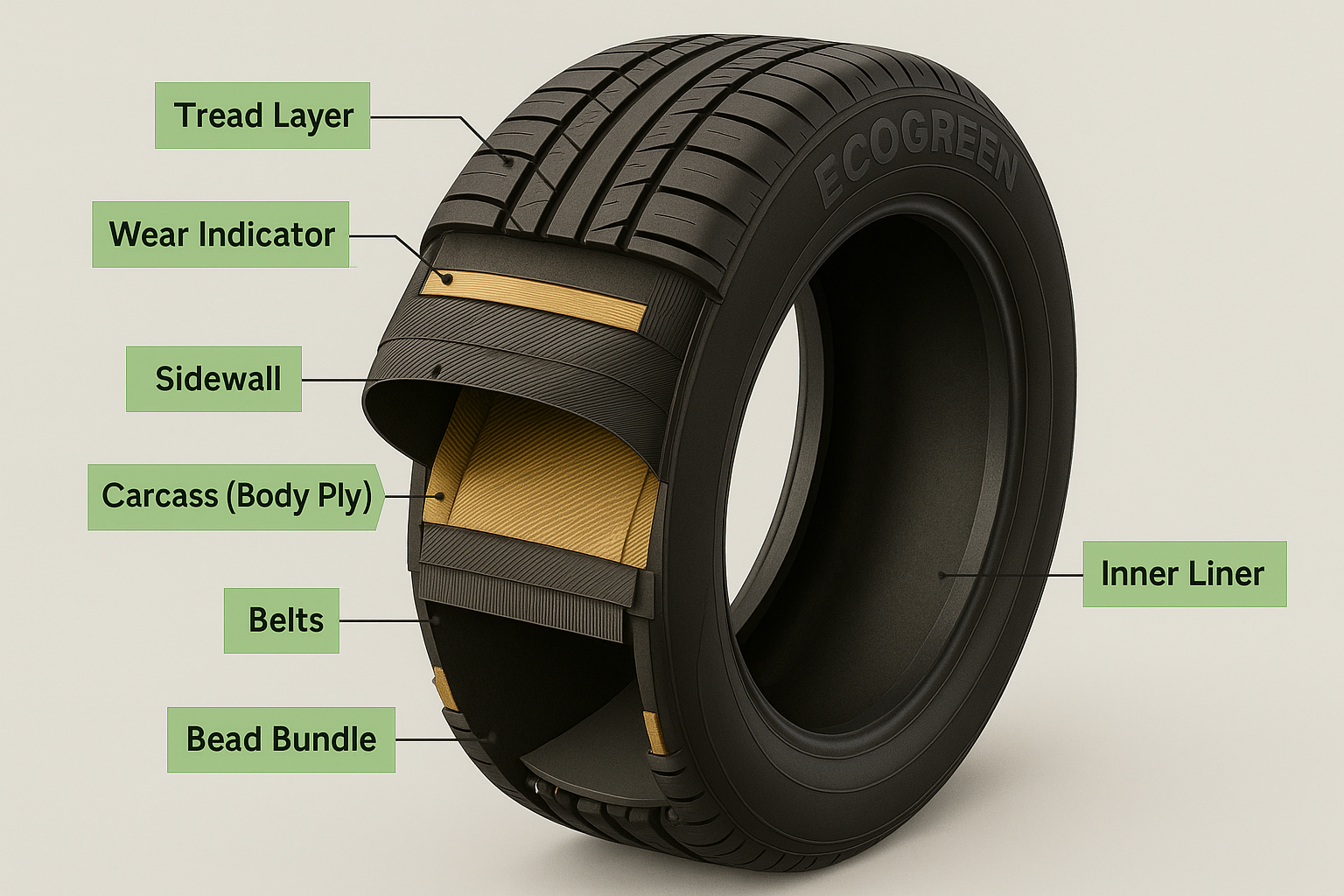

3D Conceptual Design of Eco-Friendly Tire (see attached picture)

Cross-sectional Design Breakdown:

1. Tread Layer (Top Surface)

* Material: Bio-based rubber blend (natural rubber + ENR + rice husk silica)
* Function: Grip, traction, and low-wear contact with road
* Feature: Micro-patterned channels for grip and water dispersion (EU wet traction Class A)

2. Wear Indicator Inserts (Visible in 3D model)

* Made from biodegradable color-changing PLA strips
* Indicate critical tread wear limit visually

3. Sidewall

* Material: Bio-rubber + anti-ozonant plant-based oils
* Feature: Aesthetic branding + ozone/weather resistance
* Structure: Reinforced with hemp fibers or bio-nylon

4. Carcass (Body Ply)

* Material: Polyester or bio-nylon cords
* Function: Structural flexibility and impact absorption

5. Belts

* Material: Recycled steel + hemp/basalt fabric composite
* Function: Strength and puncture resistance

6. Bead Bundle

* Material: High-tensile recycled steel wires
* Structure: Wrapped in biodegradable thermoplastic elastomer
* Modular Design: Designed for disassembly (easy bead removal for recycling)

7. Inner Liner

* Material: Butyl rubber substitute (bio-epoxy resin or PLA/EVA laminate)
* Function: Airtight seal without halogenated polymers

---

Sustainable Manufacturing Process

1. Raw Material Sourcing

* Natural rubber: Sourced from sustainable plantations with FSC certification.
* Silica: Extracted from agricultural waste (e.g., rice husks, bamboo ash).
* Plasticizers: Cold-pressed soybean/canola oil.
* Recycled materials: Steel and post-consumer polyester.

2. Compounding

* Mixed in low-emission internal mixers (Banbury or twin-screw) using:

* Low-energy mixing profile
* Zero-VOC additives
* Batch-tracking for traceability

3. Extrusion

* Tread and sidewall compounds extruded using precision dies designed to minimize material waste.
* Inner liner laminated from biodegradable thermoplastics via co-extrusion.

4. Building

* Tire built layer-by-layer on collapsible green tire drum:

* Automated robotic placement of plies and beads
* Modular mold to allow easy disassembly at end-of-life

5. Curing (Vulcanization)

* Steam-curing at reduced temperature (140–150°C) using:

* Bio-based sulfur donors
* Accelerators free of nitrosamines
* Target cycle time: 8–12 min per tire

6. Quality Control

* Automated inspection (laser thickness, X-ray for belts)
* Road simulation for:

* Rolling resistance
* Microplastic generation tracking
* Grip in dry/wet/cold conditions

---

Optional Smart Feature (Upgrade)

* Embedded RFID tag or biodegradable NFC chip in sidewall for:

* Tracking wear
* Linking to sustainability report
* Enabling return/refurbishment programs

---

End-of-Life Design

| Strategy | Description |
| ------------------ | ------------------------------------------------ |
| Modular bead | Enables safe removal of rubber for recycling |
| Material tagging | Enables AI-based sorting in recycling facilities |
| Biodegradable wear | Dust particles photodegrade in soil & water |

---
