Designing passive monitor speakers that can accurately reproduce even the lowest frequencies (typically down to 20–30 Hz) is a highly technical task. Here's a breakdown of how to approach this, including enclosure design, driver selection, and key technical specs:

---

Design Goals

* Passive (requires external amplification)
* Flat frequency response down to 20–30 Hz
* Accurate monitoring (studio use, not hi-fi coloration)
* Nearfield or midfield design
* Reasonable size and cost constraints (unless specified otherwise)

---

1. Driver Selection

To accurately reproduce low frequencies:

Woofer (Low-Frequency Driver)

* Size: Minimum 8", preferably 10" or 12"
* Material: Rigid but lightweight (e.g., aluminum, carbon fiber, or treated paper)
* Fs (Resonant Frequency): Below 30 Hz preferred
* Xmax (Maximum Excursion): ≥ 6–10 mm for deeper bass
* Qts: Around 0.3–0.5 for vented designs

Recommended Options:

* Scan-Speak Revelator 32W/4878T00 (12" subwoofer-quality woofer)
* SB Acoustics SB34NRXL75-8 (12", extended low end and clean midbass)
* SEAS L26ROY (well-known high-end LF driver)

---

2. Enclosure Design

Choose between:

* Sealed box (tight, accurate bass, requires more amplifier power)
* Ported/vented box (deeper extension, more efficient, harder to tune well)
* Transmission line or passive radiator (hybrid, deeper bass, complex)

Optimal Choice for Low Freq: Vented

* Design for Fb (box tuning frequency) = \~22–28 Hz
* Use WinISD or BassBox Pro for simulation
* Cabinet volume (Vb): 40–80 liters for 10–12" woofer

Example:

* 12” woofer
* Vb = 65 liters
* Fb = 26 Hz
* Port: flared 4” diameter, 10–15” length (to avoid chuffing)

---

3. Crossover Design

* Use high-quality passive components (air-core inductors, polypropylene caps)
* 2-way: 12" woofer + 1" dome or compression tweeter
* 3-way: Add a midrange driver (\~4–6") to improve clarity and crossover point control

Crossover Frequencies:

* Woofer–mid: \~300–500 Hz
* Mid–tweeter: \~2.5–3 kHz
* Use Linkwitz-Riley 4th-order (LR4) for flat summed response

---

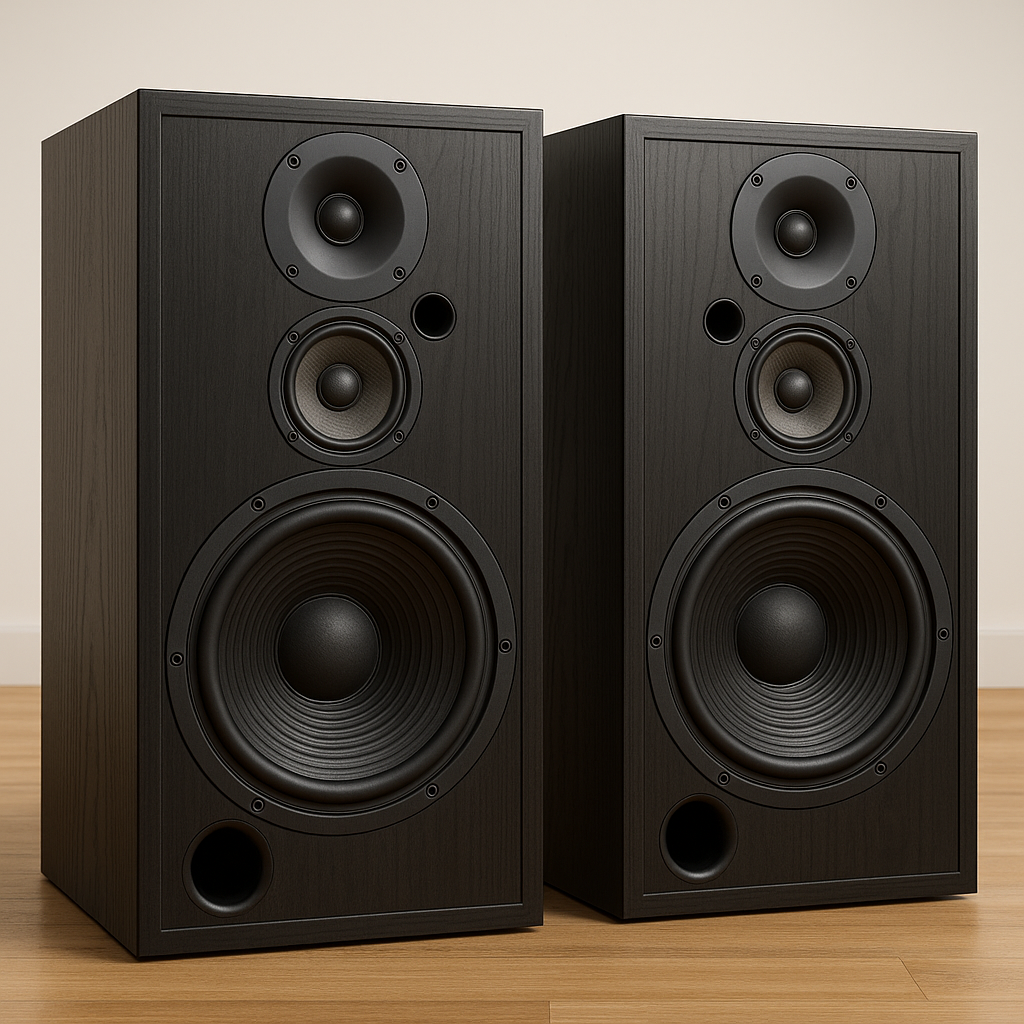

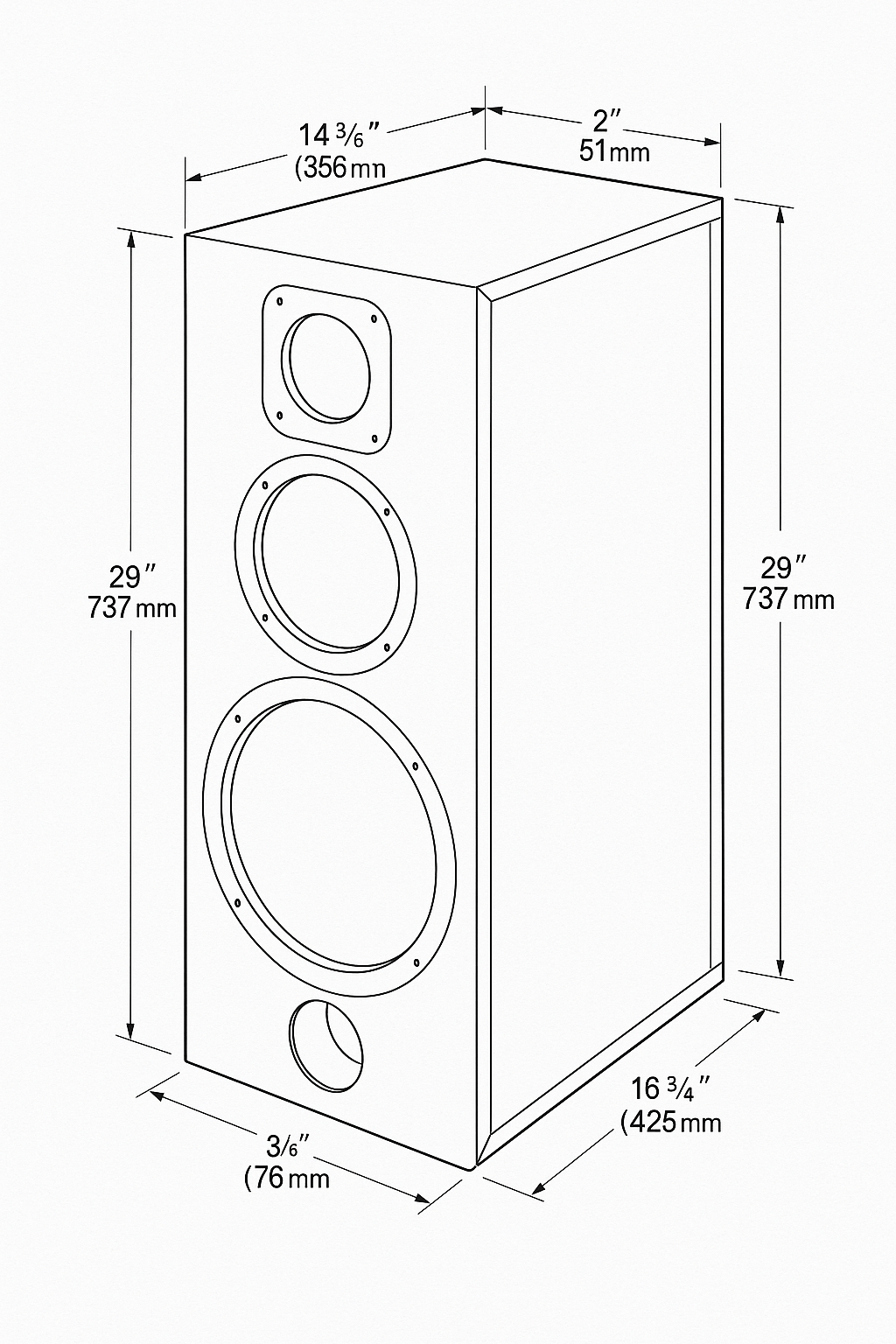

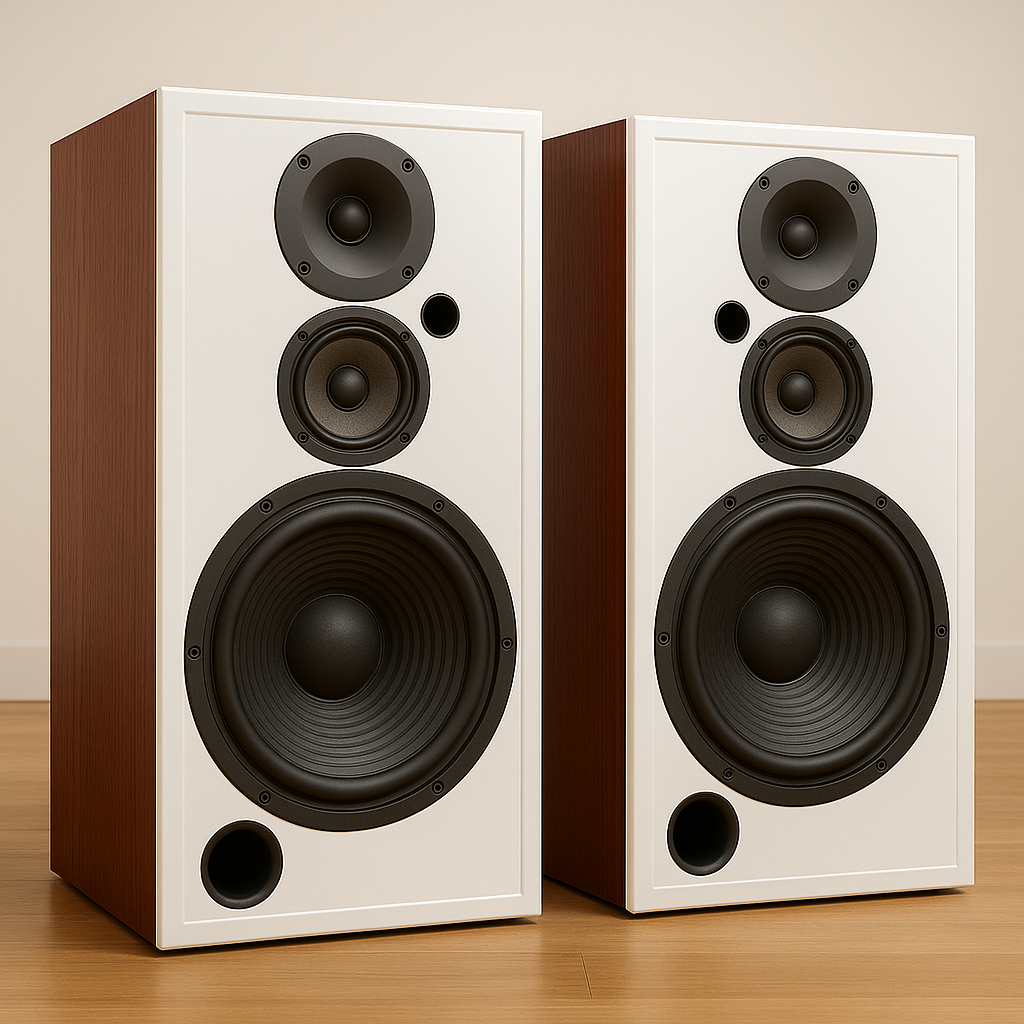

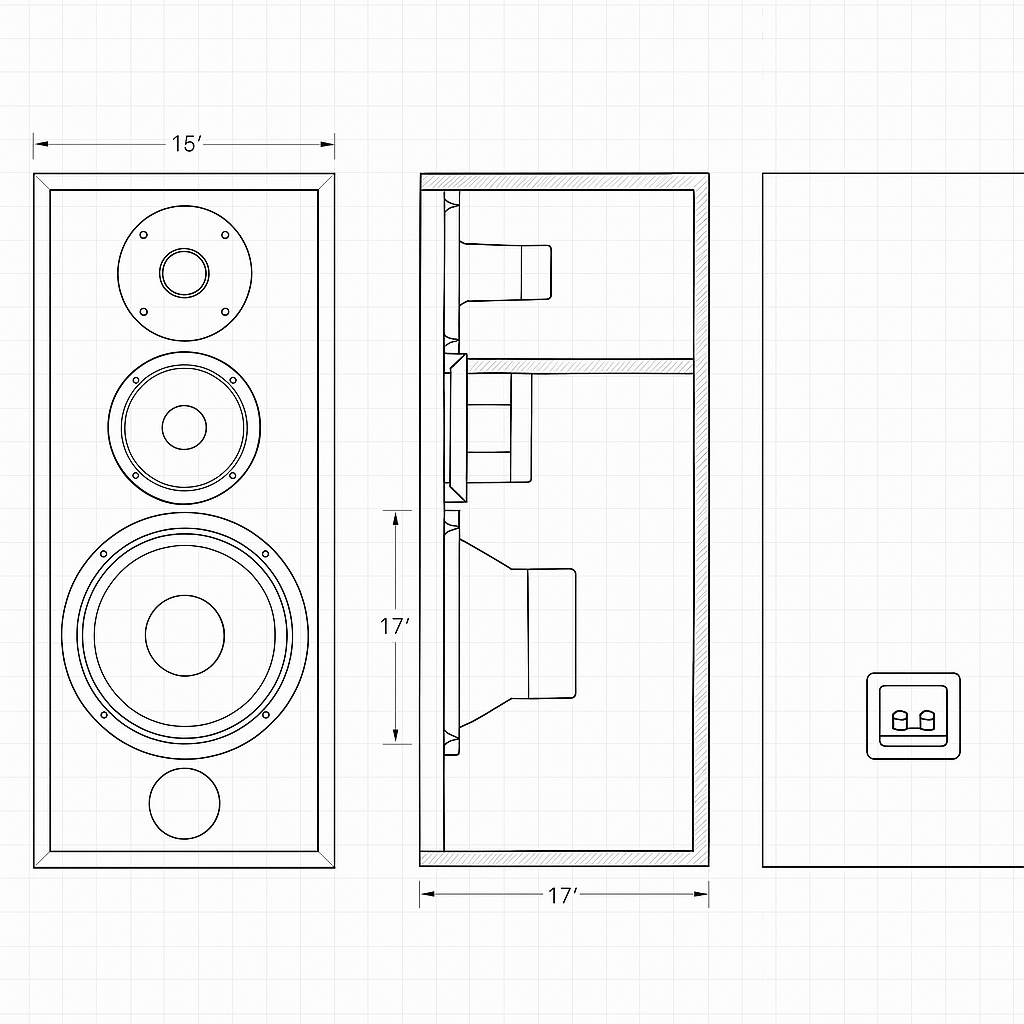

4. Cabinet Build

* MDF or birch ply (at least 18 mm thick)
* Internally braced to avoid resonances
* Damping material (acoustic foam, fiberglass, polyfill)
* Front baffle flush-mounted to reduce diffraction
* Optionally include mass-loading or rubber isolation feet

---

5. Tweeter (and Midrange) Selection

To complement large woofer:

Tweeter:

* Waveguide dome or ribbon tweeter
* Fs < 1 kHz
* Power handling > 25 W

Midrange (if 3-way):

* 4–5” cone or dome mid (e.g., Scan-Speak 15M/4531K00)

---

6. External Amplification

Because it's passive, match with:

* Amplifier power: 150–300W RMS per channel
* Damping factor: >200
* High current amp like Hypex, Bryston, or NAD

---

7. Testing and Tuning

* Use Room EQ Wizard (REW) for frequency response and impedance
* Apply baffle step compensation and fine-tune crossover

---

Example Config Summary

| Component | Spec |
| ------------- | --------------------------- |
| Woofer | 12" SB34NRXL75-8 |
| Midrange | 5” Scan-Speak 15M/4531K00 |
| Tweeter | Seas Millennium T25CF002 |
| Enclosure | 65 L vented, tuned to 26 Hz |
| Crossover | 3-way LR4: 400 Hz / 3 kHz |
| Amplification | 200W/channel (external) |
| Freq Response | 25 Hz – 20 kHz ±2 dB |
